EHH-C48BA/EHH-O48BB
Cassette type Heat Pump System
EHH-C48BA/EHH-O48BB
Cassette type Heat Pump System
48 000 BTU/H (208/230 V)
Product features
| Property | Value |
|---|---|
| Indoor unit model | EHH-C48BA |
| Outdoor unit model | EHH-O48BB |

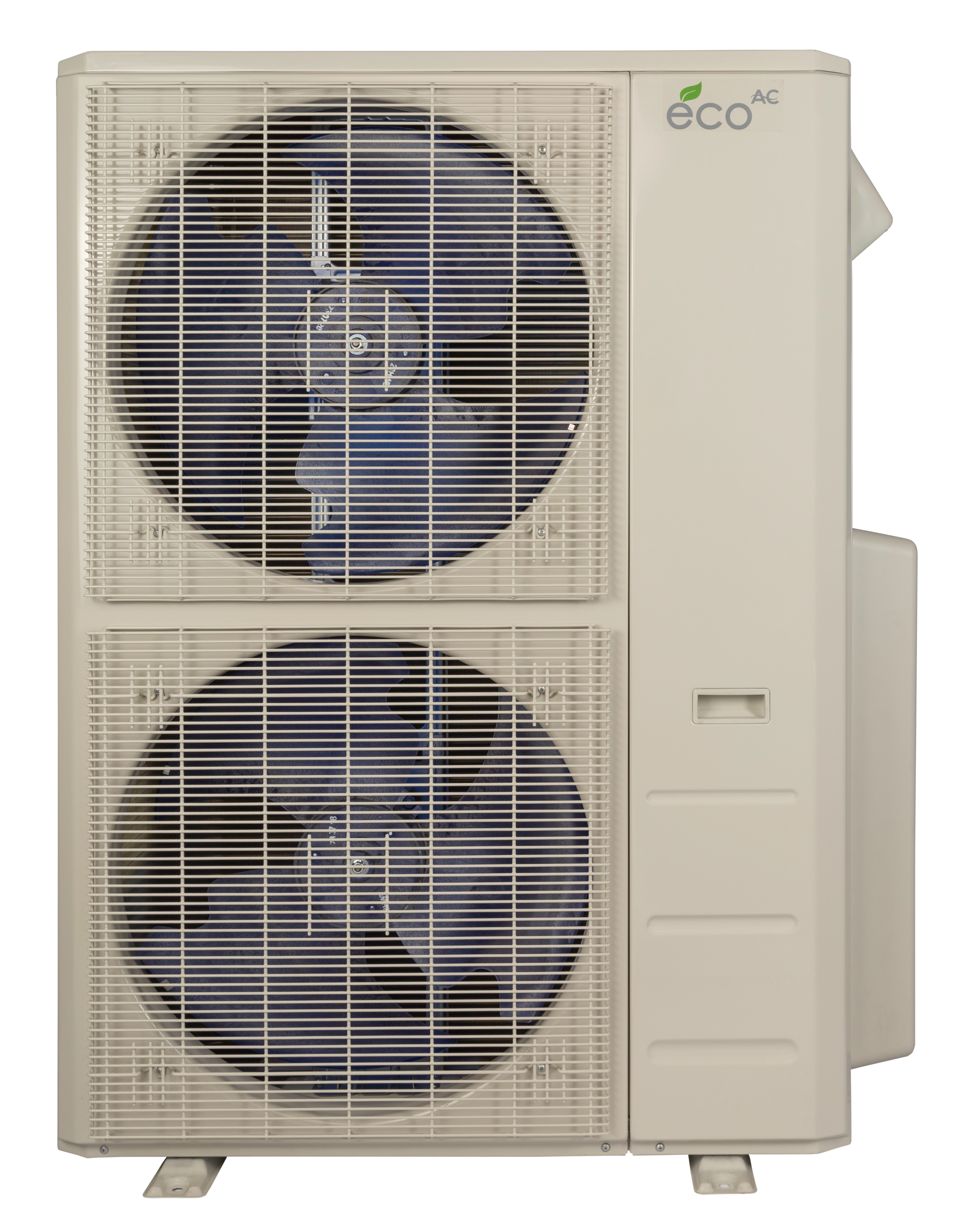

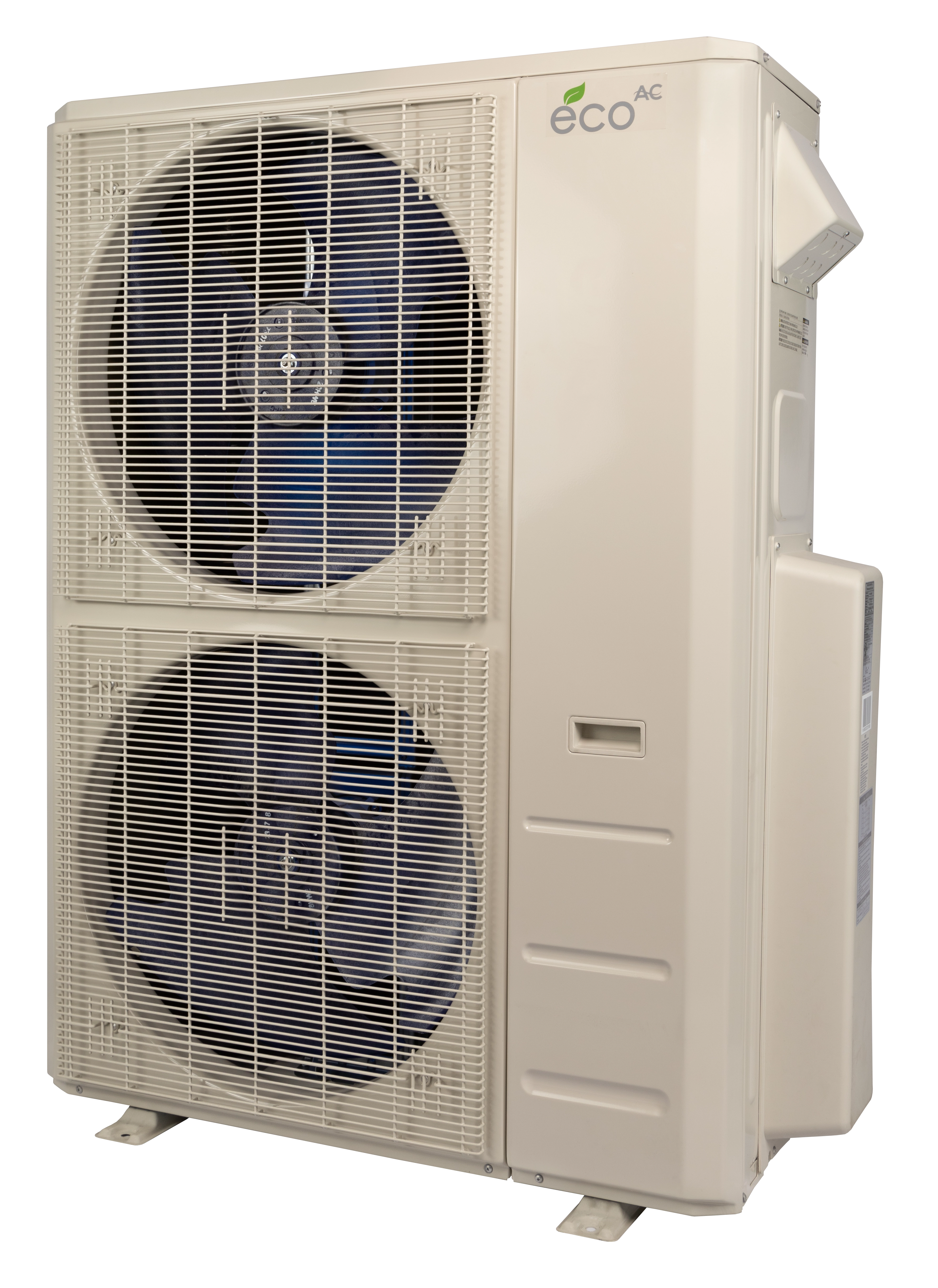

Outdoor unit
| Property | Value | |
|---|---|---|
| Model | EHH-O48BB | |
| Capacity | Btu/h | 48,000 |
| SEER | 17.8 | |
| SEER2 | NA | |
| HSPF5 | 8.5 | |
| Heating at 17°F | Btu/h | NA |
| Heating capacity (min-max) | Btu/h | 11850~52000 |
| Cooling capacity (min-max) | Btu/h | 16600~48000 |
| MCA/MOCP | 36.5 / 50 | |
| Dimension ( W x H x D) | inch | 37.5 x 52.5 x 16.3 |
| Weight | lbs | 219 |
| Sound level | dB(A) | 63.5 |
Indoor unit
| Property | Value | |
|---|---|---|
| Model | EHH-C48BA | |
| Capacity | Btu/h | 48,000 |
| Dimension ( W x H x D) | inch | 32.7 x 11.3 x 32.7 |
| Weight | lbs | 29 |
| Air flow & Noise level | ||
| Nominal sound level | dB(A) | 53 |
| Airflow rate (max/avg/min) | CFM | 1171 / 1059 / 935 |
